AUD $440.00 Excl. GST
Need Help? Call 1300 788 213 Now to Talk to an Expert!

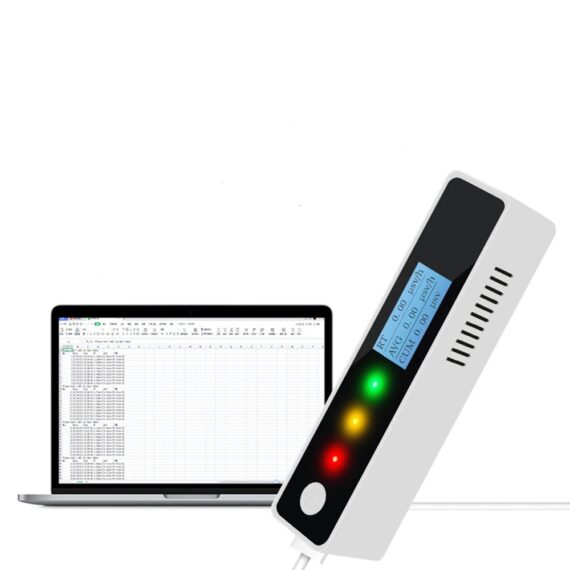

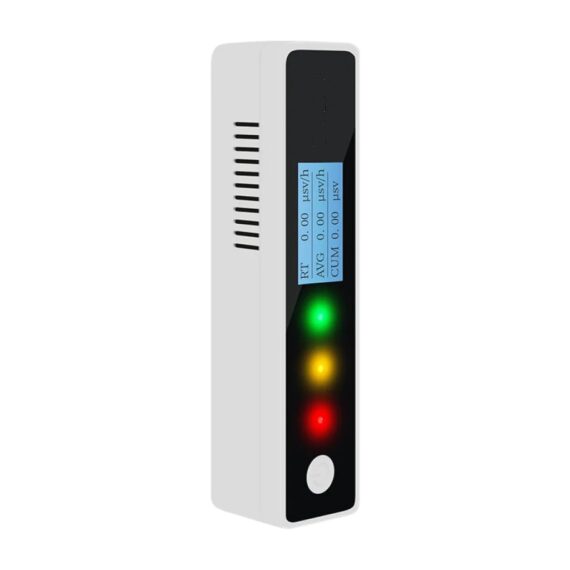

A highly sophisticated design data logging dosimeter which uses the Geiger Miller counter tube to measure X-ray, Beta & Gamma radiations. It can store up to 10,000 set of data with vary of logging interval. Recorded data are to be exported in Excel file format against date & time for traceable purpose. Hi or low alarm range can be set by user upon application.
All units are to be calibrated with German Cray R900 Radiation Detector with check source for accuracy. Calibration certificate can be supplied on request with additional cost.
- Measurement of 3 types of radiation: X-ray, Beta & Gamma
- Portable or desktop mounting design
- High accuracy with average readings taken by minute
- Massive data storage capacity
- Visual & buzzer alarm
- Selectable logging interval
- Data export to Excel Spreadsheet
- Touchscreen menu
- Rechargeable battery
| Model No. | RL-D003 |
| Detectable Type | X-Ray, Beta β , Gamma γ Ray |
| Measurement Range | 0 – 9999 µSV/h |
| Resolution | 0.01 µSV/h |
| Sensor Type | Geiger-Miller (GM) counter tube with energy compensation |
| Energy Range | 20 kev – 3 mev ≤ ±30% (137Cs-) |
| Sensitivity | 80 cpm / µSV / (Co-60) |
| Real Time Error | ≤ 3% |
| Display | 1.3 inch OLED with LED working status indicators (Red, Yellow, Green) |
| Data Logging Capacity | Approx. 10,000 data set via USB connection or APP |
| Logging Interval | From 10s to 1 hour |
| Alarm | Hi / Lo visual & audio alarm |
| Material | ABS plastic |
| Battery | In-built 3.7V rechargeable lithium battery |
| Charging Duration | 1-2 hours |
| Working hours | > 5 days continuously |
| Dimensions | 120 (H) × 26 (W) × 27 (D) in mm |
| Weight | 60g |
- 1 x Radiation Data Logger
- 1 x USB Cable
- 1 x Power Adaptor
- 1 x User’s Manual
- 1 x Standard Factory Packing
